AFRICA TRADING · MINING SUPPLIES
Fibreglass and steel grating for walkways, platforms, stairs and industrial access.
Brands
Fibreglass gratings

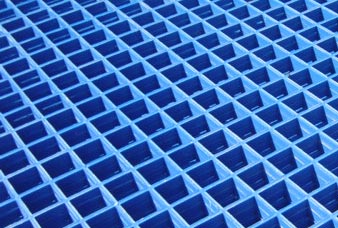

Continuous glass-fibre and resin panels for walkways, platforms, gullies and trenches. Standard panel: 1220 × 2440 mm. Depth / mesh options: 13 / 50 × 50 mm; 25 / 38 × 38 mm; 30 / 38 × 38 mm; 30 / 20 × 20 mm; 38 / 38 × 38 mm; 50 / 50 × 50 mm. Confirm resin and load requirements on enquiry.
Fibreglass gratings

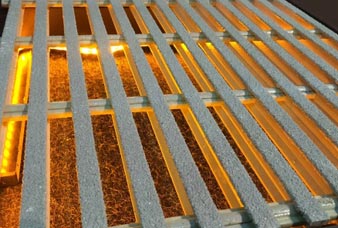

I-section load-bearing bars bonded and mechanically locked to transverse bars. Suitable for wider spans and drainage applications; load and span suitability must be confirmed for each installation.
Fibreglass gratings

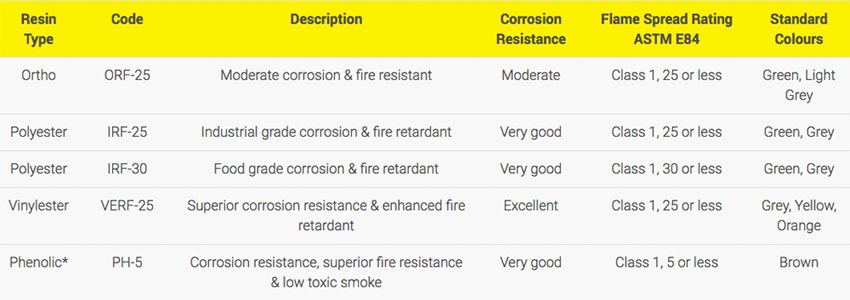

Phenolic grating for applications where fire performance, low smoke and toxicity requirements are important. Specify the required fire rating and supporting documentation on enquiry.
Flooring & access

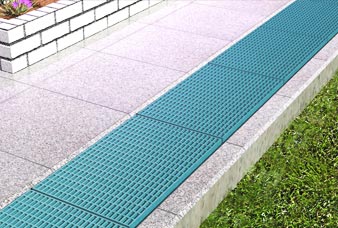

GRP trench cover options for industrial access and service channels. Specify opening dimensions, support arrangement and design loads.
Flooring & access

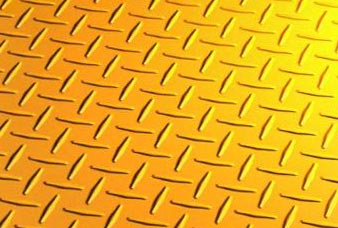

Lightweight alternative to patterned steel plate. Polyester, vinylester and phenolic resin options; colours and suitability confirmed to application.
Handrails & profiles

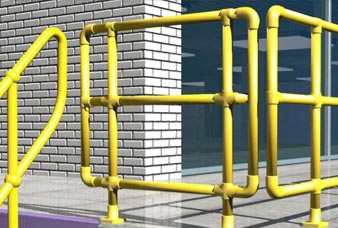

GRP tubular handrails and connectors for corrosive environments, including mine leaching and processing plants. Flat or profiled pultruded kickflats are also available.
Flooring & access

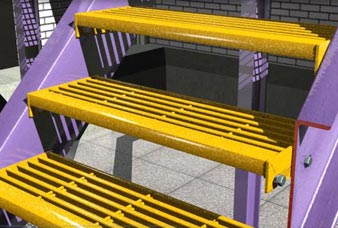

38 mm deep with 38 × 38 mm mesh, green quartz-grit surface and black non-slip nosing. Standard lengths: 881, 767 and 729 mm; widths: 235 and 273 mm. Confirm the required size combination on enquiry.
Handrails & profiles

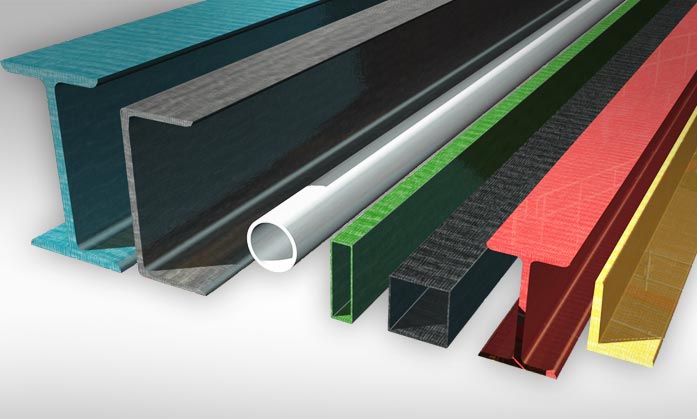

GRP I-beams, wide-flange beams and channels in metric and imperial sizes. Specify profile, resin, dimensions and structural loading requirements.
Fixings
M-type and C-type clips for moulded and pultruded grating, with bolt, nut and washer. Fixing quantities and layout must suit panel dimensions and installation requirements.
Steel gratings

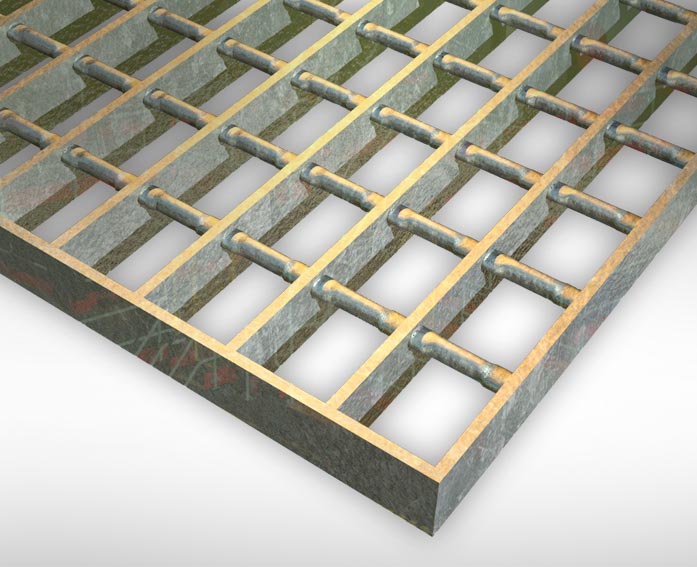

Plain pressure-forged grating for industrial platforms and walkways. Standard panels or cut-to-size layouts; specify aperture, bearing bar, span and loading. Materials and finishes include mild steel, galvanised steel, stainless steel, aluminium and bitumen coating, subject to the selected product.
Steel gratings

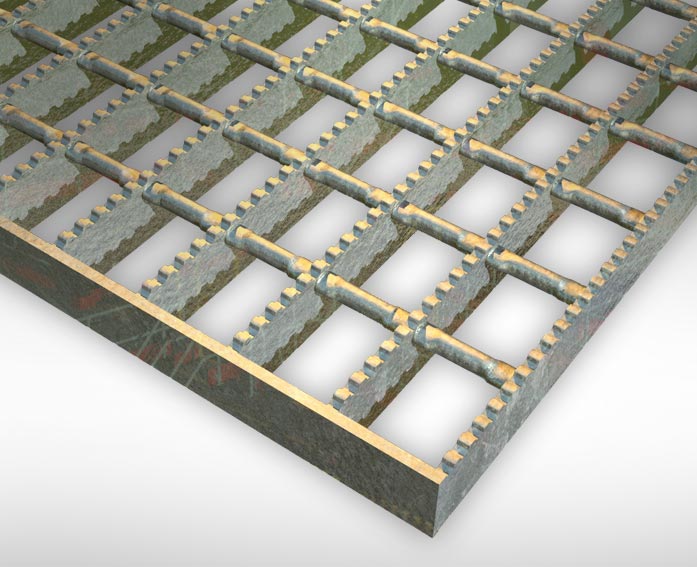

Serrated bearing surfaces for improved grip in slippery working areas. Specify mesh, panel dimensions, material and finish. Materials and finishes include mild steel, galvanised steel, stainless steel, aluminium and bitumen coating, subject to the selected product.
Steel gratings

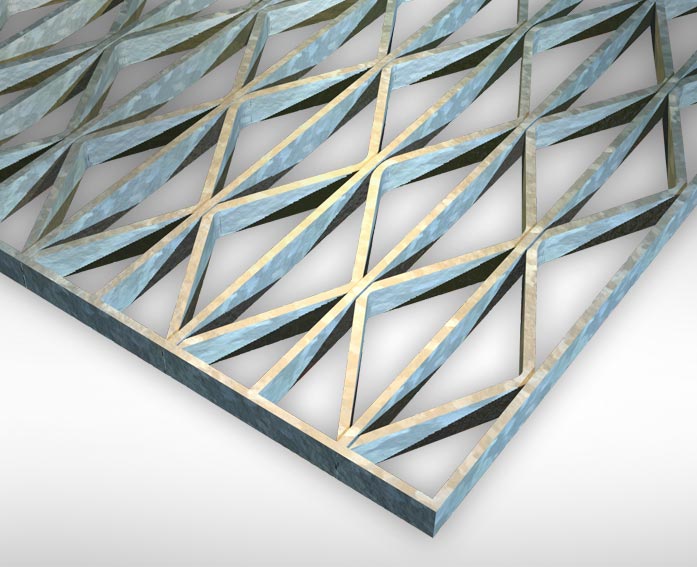

Diamond-pattern grating for industrial and architectural applications. Dimensions, loading and finish confirmed on enquiry. Materials and finishes include mild steel, galvanised steel, stainless steel, aluminium and bitumen coating, subject to the selected product.
Steel gratings
Small-aperture steel grating for trenches and pedestrian access. Available galvanised, coated or plain; confirm aperture and accessibility requirements. Materials and finishes include mild steel, galvanised steel, stainless steel, aluminium and bitumen coating, subject to the selected product.

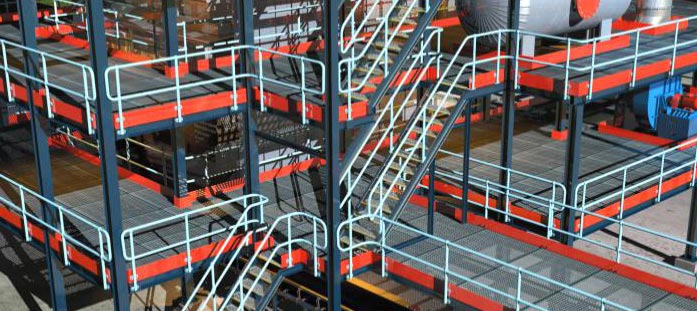

Steel flooring & access
Walkway panels for maintenance and production platforms. Supplier loading categories: light duty 300 kg/m², medium duty 500 kg/m² and heavy duty 750 kg/m² UDL. Suitability depends on selected section and span; confirm against loading tables.

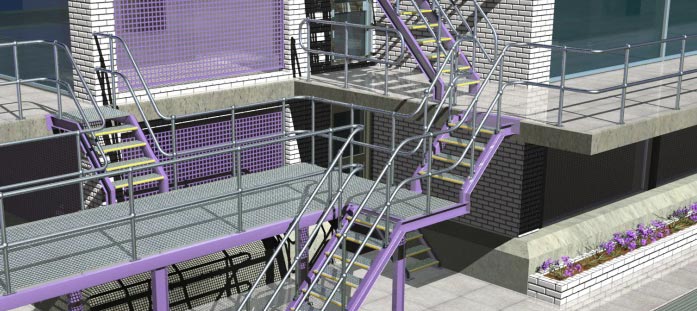

Steel flooring & access
Grating walkway panels tailored to architectural layouts. Supply drawings, support spacing, design load and finish requirements.
Steel flooring & access

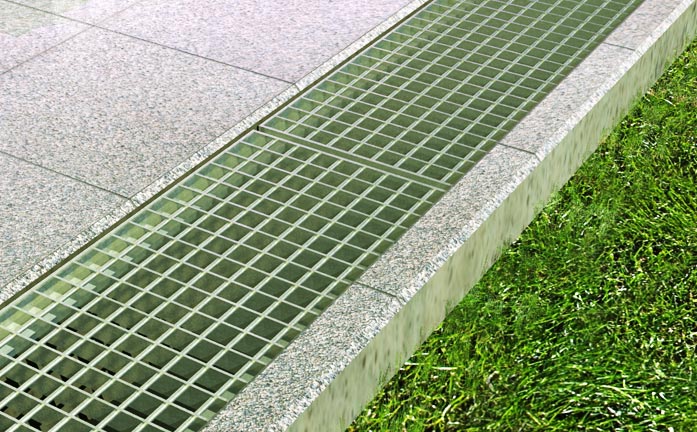

Grating covers sized to trench openings and frames. Specify frame tolerances and angle root-radius clearance to prevent rocking or shifting.
Steel stair treads

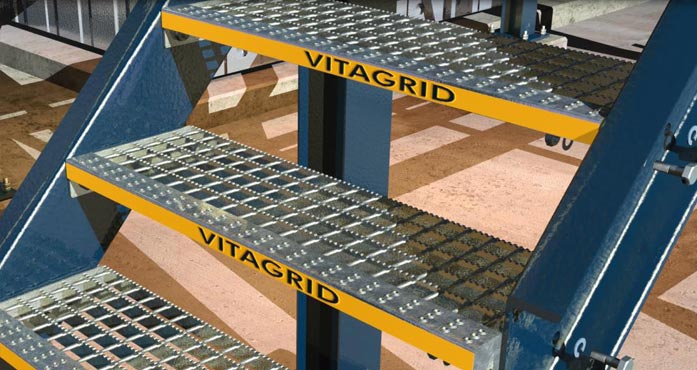

Standard grating stair treads with fixings. Specify width, depth, bearing members, mounting arrangement and material finish.

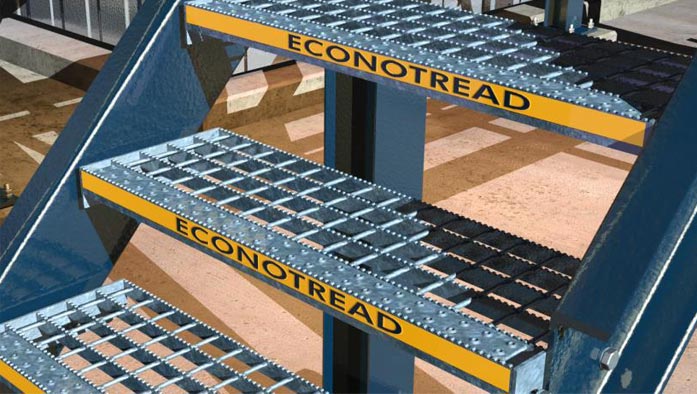

Steel stair treads

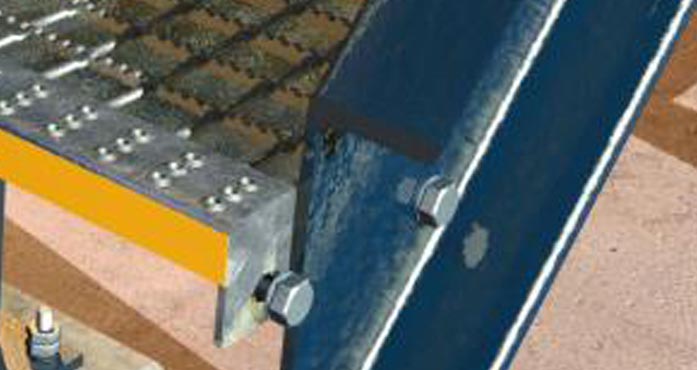

Non-slip serrated treads with bolt-on fixings for industrial stairs. Confirm dimensions, hole positions and loading requirements.
Steel stair treads
Robust serrated treads for industrial access. Specify required tread dimensions, material, finish and design loading.
Steel flooring & access

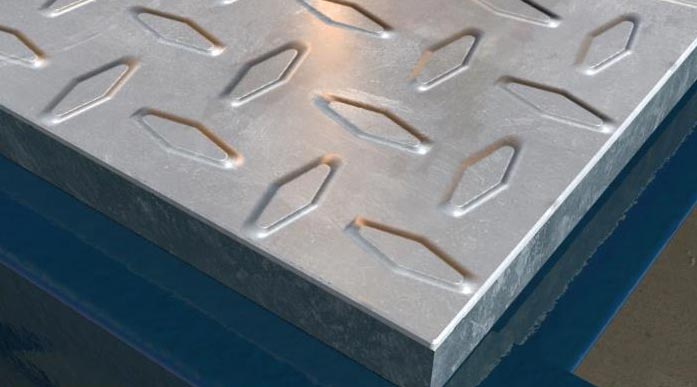

Open steel grating substructure topped with 3 mm patterned chequer plate. Grating configuration is selected to suit the required load and span.
Steel fixings

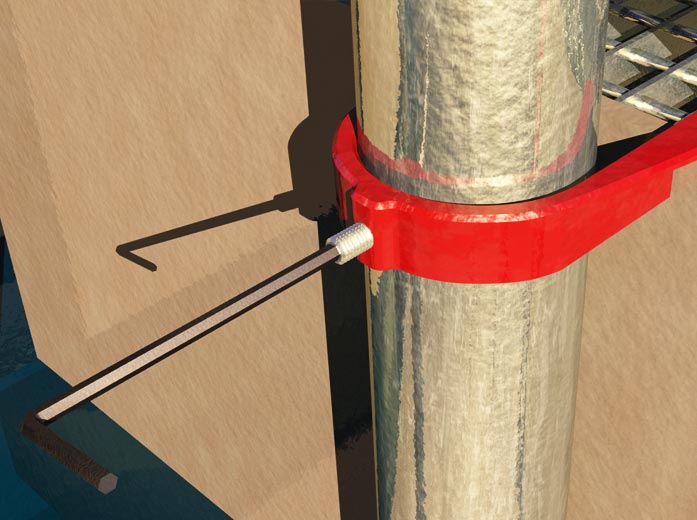

Key-type grating fixings. Confirm panel type and support arrangement for compatible fixing selection.
Steel fixings

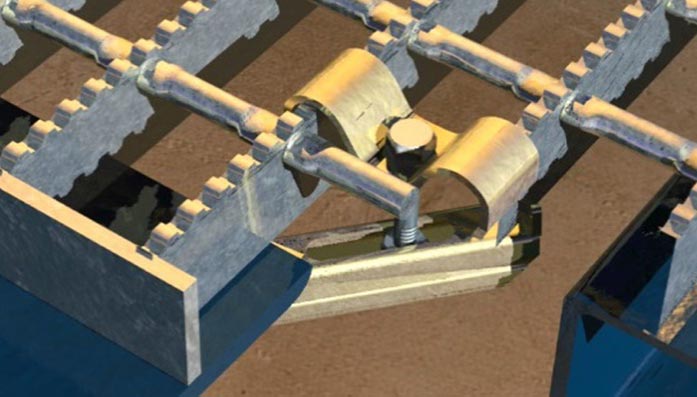

Heavy-duty clamps installed from above, with a nyloc nut for applications subject to vibration. Confirm compatibility with the grating and support structure.
Steel fixings

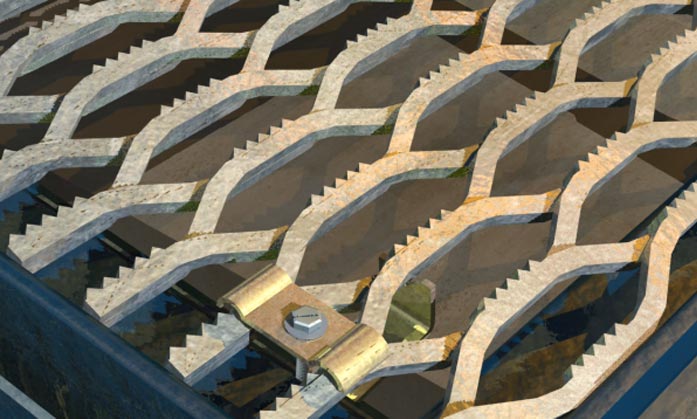

Saddle clamps for securing grating panels. Specify bearing-bar spacing, support details and finish.
Steel fixings

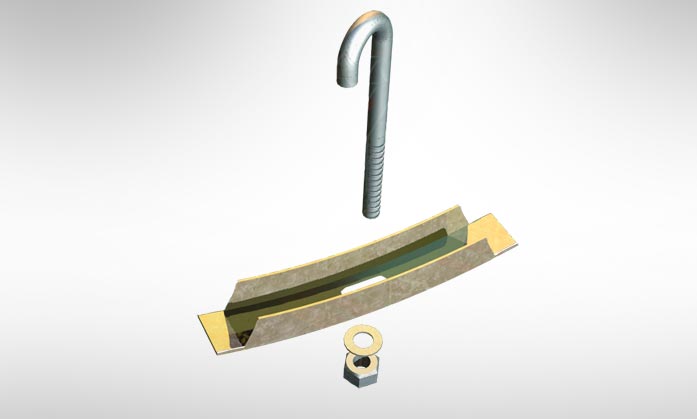

Hook-bolt fixing assemblies for grating panels. Specify support flange dimensions and required finish.
Steel fixings

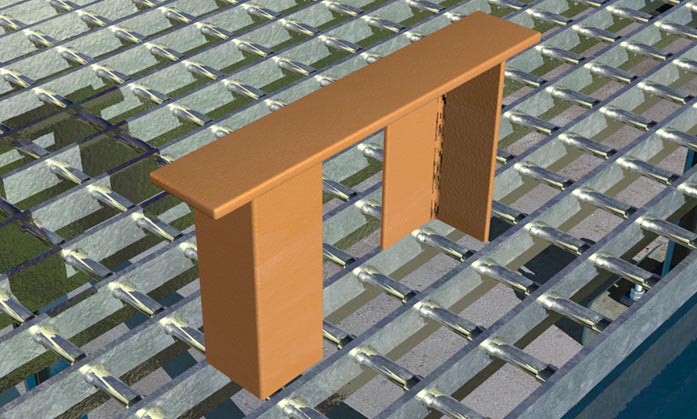

Locating pins for grating panel positioning. Selection depends on panel layout and supporting structure.
Steel fixings

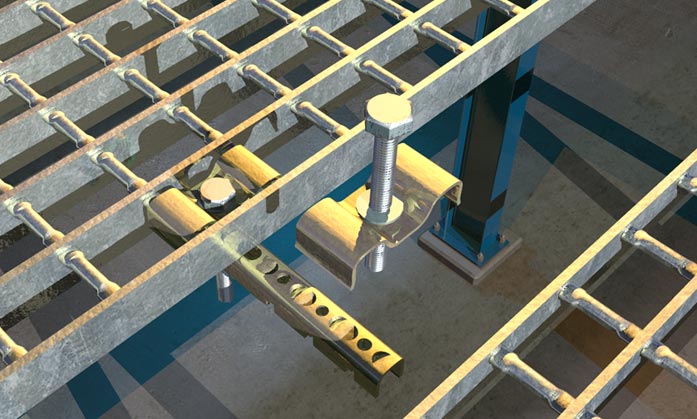

Continuity clips for grating installations. Confirm suitability and installation requirements for the specified system.
Steel fixings

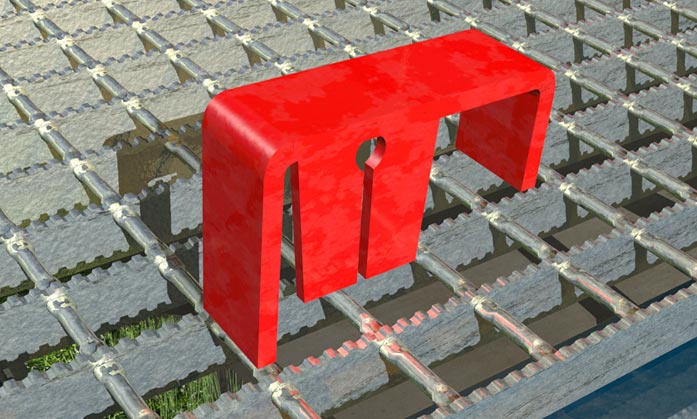

Grip-type grating fixings. Supply panel and support details for compatible fixing selection.
Brand names identify their respective manufacturers. Products are sourced to your requirements.
